Toast POS Networks Explained: Toast-Managed vs Self-Managed UniFi

If Toast installed a Cisco Meraki router and its own access points beside your existing network, that equipment may be there for a good reason. Toast supports both a Toast-managed network and a self-managed or third-party-managed model, and the difference is bigger than the logo on the router. It determines who controls the configuration, which equipment Toast will troubleshoot, and who the restaurant calls when a handheld stops sending orders during service.

The right question is not simply whether Toast "works with UniFi." It is whether the restaurant wants one vendor to administer the POS connectivity path or wants its IT provider to own the network and coordinate with Toast. Identify that model first. Only then is it safe to discuss VLANs, access points, failover, and the UniFi settings that affect a self-managed deployment.

The 60-Second Answer: Identify the Network Owner Before Touching Anything

Before reconfiguring a switch port, moving an access point, or placing any equipment ahead of a Toast router, answer one question: who owns this network?

Toast deploys two distinct models, and the answer determines everything that follows.

Toast-managed network. The restaurant purchased networking equipment from Toast, and Toast administers the configuration. Toast holds administrative control over the router, switches, and access points. If a terminal loses connectivity, the first call goes to Toast — and Toast can troubleshoot the full path from the router to the device.

Self-managed or TPSP network. The restaurant or a third-party service provider supplied the networking equipment. The restaurant's IT team or contractor holds administrative control. Toast supports the POS hardware and software, but the network layer belongs to whoever built it.

Three checks identify the model at any location:

1. Who supplied the router and access points? If the restaurant purchased the networking equipment from Toast and Toast configured it, it is likely a managed deployment.
2. Who has administrative access? If the restaurant or its IT provider cannot log into the router or AP controller, Toast probably administers it.
3. Whose support agreement covers the network? The contract language — not the hardware brand — defines the support boundary.

Once you know the model, the rest of this article applies differently. If you have a Toast-managed network, focus on the managed-vs-self-managed comparison, the fault tree, and the backup internet sections for operational context. If you manage Toast on your own network, every section applies — VLANs, RF coverage, cabling, and validation all sit on your side of the ownership line.

Why Toast May Install a Completely Separate Network

Walk into a restaurant with Toast and you may find two complete networks: the restaurant's business infrastructure and a separate Toast stack with its own router, switch, and access points. This is not duplication caused by a communication failure. It is how Toast's managed network model works.

Toast provides all necessary network infrastructure during a standard deployment. The managed stack creates a dedicated connectivity path for Toast terminals, handhelds, printers, and kitchen display systems. The exact hardware varies — a location may contain Cisco Meraki equipment, a Toast Router (Pronto), Toast-provided UniFi components, or mixed generations from different installation periods.

The operational logic is straightforward. When Toast administers the router, the switch, the APs, and the configuration, Toast can troubleshoot the entire path from the device to the internet without depending on a third party. The restaurant gets a single escalation point for POS connectivity, and Toast gets the administrative access it needs to diagnose problems remotely.

This model makes particular sense for restaurants that do not have a dedicated IT provider or whose IT support is not available during service hours. Restaurants need a support path that remains available when connectivity problems occur — not a voicemail box that returns calls on the next business day.

The trade-off is clear: the restaurant gains a simplified support path but loses direct control over POS network configuration, and it carries a second set of networking equipment alongside whatever infrastructure already serves the rest of the business.

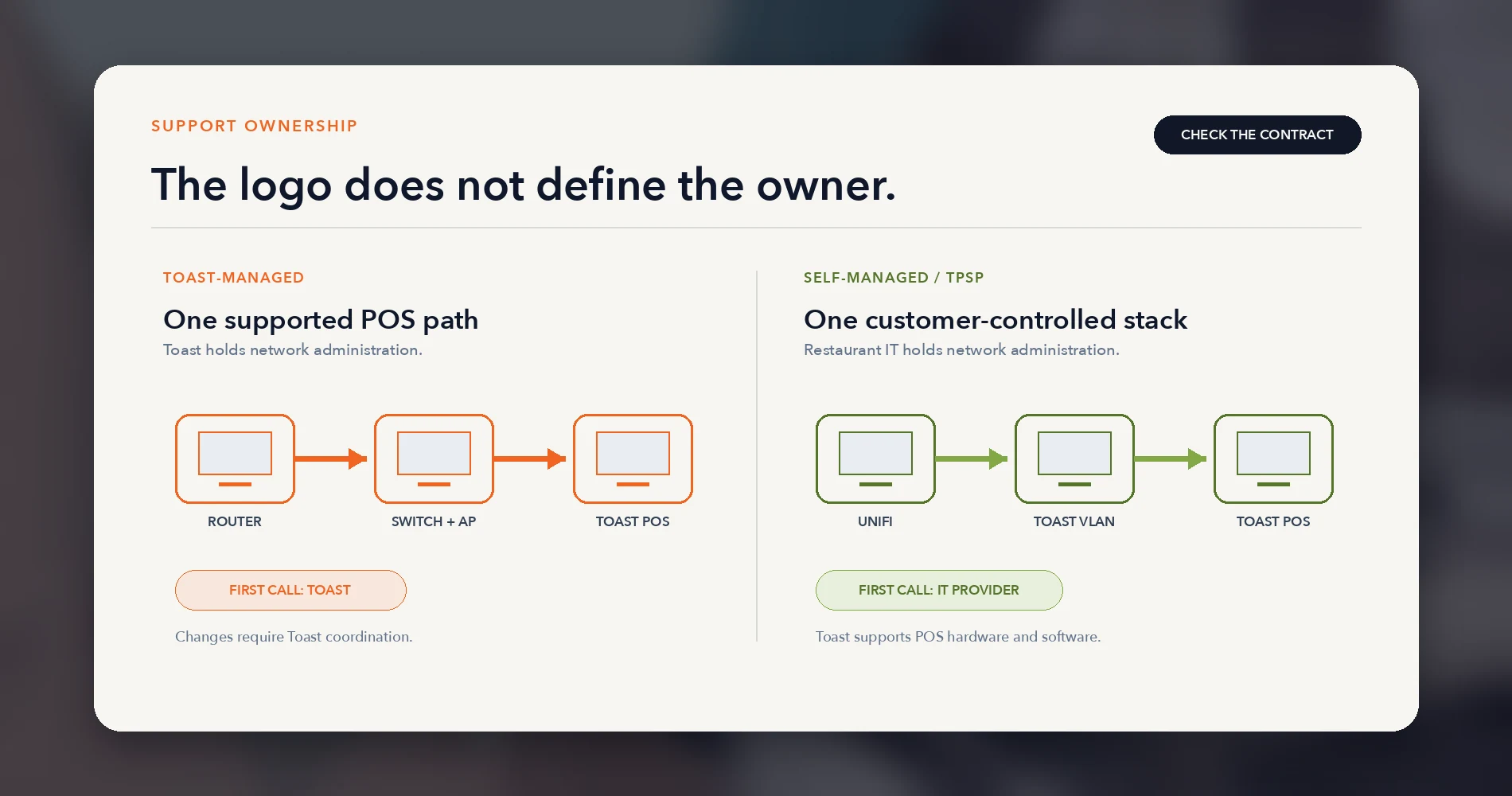

Managed vs Self-Managed Is Really a Support Decision

The choice between a Toast-managed network and a self-managed design is not primarily a hardware debate. It is a support-ownership decision that determines who the restaurant calls first, who diagnoses the problem, and who carries responsibility when the answer is not immediately obvious.

The key risk is choosing self-managed without the IT support to back it. If the restaurant's IT provider cannot respond promptly when a terminal loses connectivity during service, the self-managed model leaves a gap that neither Toast nor the IT provider can close alone.

The Terminal-Offline Fault Tree

"The terminal is offline" is a symptom, not a diagnosis. The fault could sit in any of six domains, and the support owner is different at each branch. Understanding where to look first — and who to call — prevents the restaurant from bouncing between Toast and the IT provider during an active incident.

Branch 1: Power and physical connection. Is the device powered on? Is the Ethernet cable seated at both ends, or is the Wi-Fi radio active? Check the cable from the device to the wall jack and from the patch panel to the switch port. A loose RJ45 connector or a cable accidentally unplugged during cleaning is one of the most frequently overlooked causes.

• Support owner: On-site staff or IT provider.

Branch 2: Switch and Wi-Fi path. Is the switch port active? Is the correct VLAN assigned? For wireless devices, is the AP broadcasting the Toast SSID, and does the device show a connection? Check signal strength — Toast requires a minimum of -65 dBm in service areas.

• Support owner: IT provider (self-managed) or Toast (managed).

Branch 3: Addressing, DNS, and firewall. Does the device have a valid IP address? Can it reach the gateway? Are DNS servers responding? Has a firewall rule or content filter blocked Toast's required URLs and ports? ICMP echo replies must not be restricted.

• Support owner: IT provider (self-managed) or Toast (managed).

Branch 4: ISP and cloud connectivity. Is the internet connection active? Can the router reach external hosts? If the primary circuit is down, has failover engaged? Is there a Toast service disruption — check the status page before rebooting equipment.

• Support owner: ISP for the circuit, Toast for cloud services.

Branch 5: Terminal hardware and software. Is the Toast application responsive? Has the device been rebooted recently? Is the software version current? Hardware failures — cracked screens, battery drain, failed radios — present as connectivity problems but are device issues.

• Support owner: Toast.

Branch 6: Peripheral path. Printers and KDS devices that stop receiving tickets may have their own network path problem. A printer on a different VLAN than the terminals, or with client isolation enabled, will silently fail to receive print jobs. Bonjour, multicast, and UPnP must be enabled for local device communication. For KDS to function during Offline Mode, at least one hardwired non-Elo V1 Toast device must act as the local hub, and UPnP multicast must be enabled.

• Support owner: IT provider for network configuration, Toast for device pairing and software.

The practical lesson: start at the physical layer and work up. A cable, a port, or a power cycle resolves the problem more often than a firewall change or a cloud issue. And before spending time on hold, check the Toast status page to confirm the problem is local rather than a Toast service disruption.

What Toast Actually Requires on a Self-Managed Network

If the restaurant operates a self-managed or TPSP network, Toast publishes a list of requirements and preferences that the deployment should follow. Meeting them eases troubleshooting and keeps the deployment within Toast's supported configuration. These come directly from Toast's Network Requirements Overview, last updated July 2026. Toast describes these as a mixture of requirements and preferences — not every item is a contractual prerequisite, but deviating from any of them can complicate support. Where iFeelTech's operational preference differs from the published guidance, it is noted separately.

Last verified against Toast documentation: August 13, 2026.

Toast's bandwidth minimums by installation size:

iFeelTech's operational preference: Even for smaller installations, we recommend dedicating at least 15/5 Mbps to Toast. A restaurant that grows from two tablets to ten — which happens faster than most owners expect — should not need a network redesign to support the upgrade. Building in headroom from day one is cheaper than retrofitting under time pressure.

Where UniFi Fits — and Where It Does Not

UniFi hardware can appear in a Toast deployment in three very different configurations. Conflating them causes confusion about who controls what, so identify the pattern before making any changes.

Pattern A: Toast-Managed Stack Beside a Customer UniFi Network

The restaurant runs its business network on UniFi — gateway, switches, APs — and Toast installed a separate managed stack (Meraki, Pronto, or Toast-provided equipment) for POS devices. The two networks coexist physically but operate independently. The restaurant's IT provider manages the UniFi side. Toast manages the POS side.

This is a common pattern at locations where Toast deployed before the restaurant's IT provider built or upgraded the general network. It works. The trade-off is two parallel sets of equipment, two sets of documentation, and two support paths.

Pattern B: Approved Self-Managed Toast VLAN on Customer UniFi

The restaurant or its IT provider owns the entire network — UniFi gateway, switches, and APs — and has configured a dedicated Toast VLAN, SSID, and firewall rules that meet Toast's self-managed network requirements. Toast devices connect through the customer-controlled infrastructure. The IT provider owns the network; Toast supports the POS.

This pattern delivers unified visibility and a single equipment set, but moves full network responsibility to the restaurant's IT team. Every requirement in the table above must be met, maintained, and documented. If something breaks in the network layer during service, the IT provider — not Toast — is the first call.

Pattern C: Toast-Provided UniFi Components in a Managed Deployment

Toast has used UniFi access points and other Ubiquiti equipment in some managed deployments. The UniFi logo on the hardware does not mean the restaurant controls the configuration. If the equipment was purchased from Toast and Toast configured it, it remains part of the managed network regardless of the brand.

Check who holds administrative access to the UniFi controller — not who manufactured the hardware — to determine the actual deployment model.

For a deeper look at how UniFi fits into a complete business network architecture, see the UniFi Network Blueprint for Business. For restaurant-specific design covering non-Toast zones, security cameras, guest Wi-Fi, and full-site topology, see the Restaurant Network Blueprint.

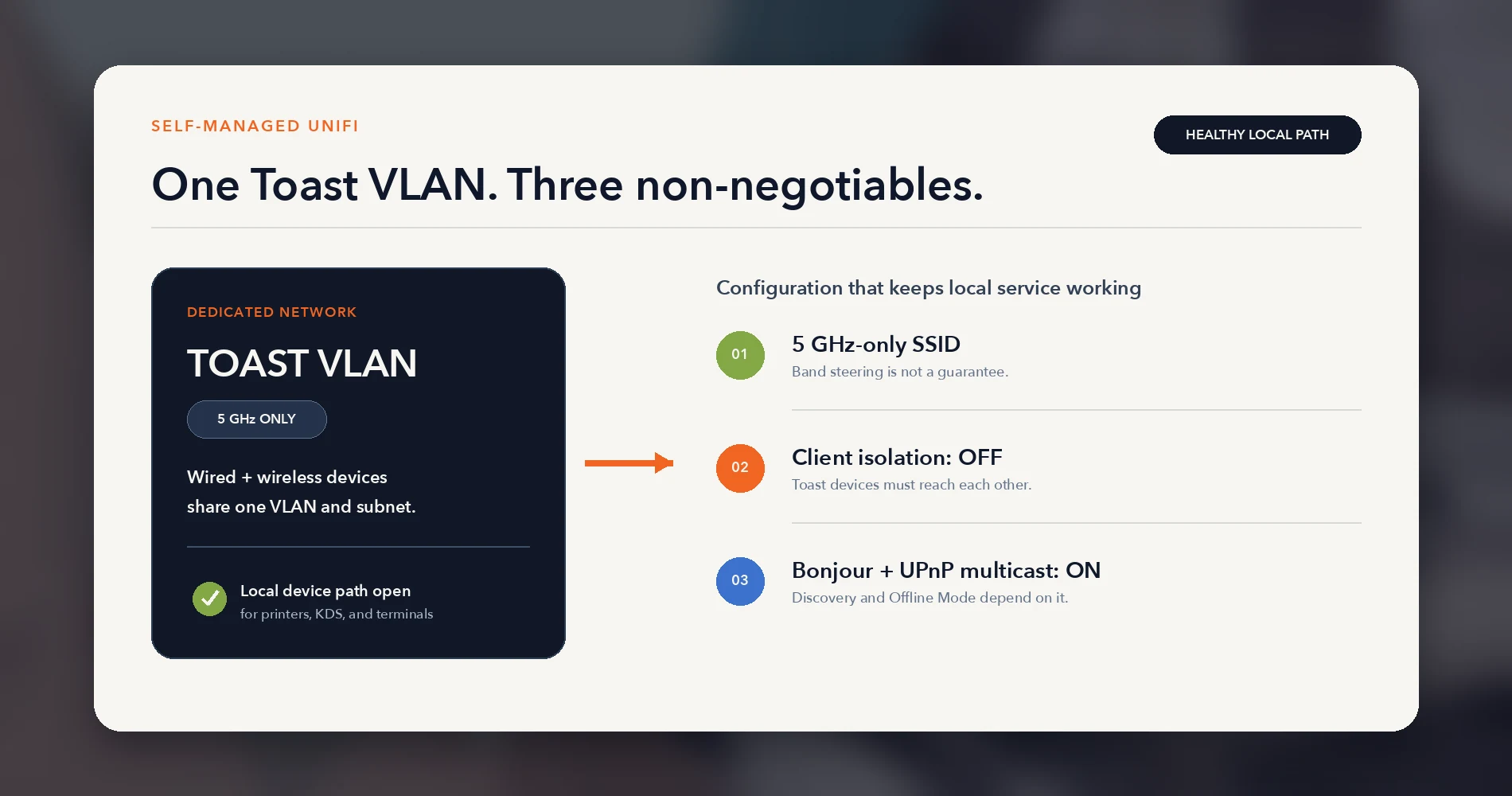

The Three Self-Managed Settings Most Likely to Cause Trouble

In our restaurant-network work, three UniFi configuration choices are recurring causes of self-managed Toast connectivity problems. All three look harmless in the UI, and all three can silently break POS operations.

1. Band Steering Instead of a Dedicated 5 GHz SSID

Toast requires wireless Toast devices to operate on the 5 GHz band. The temptation is to create a single dual-band SSID and enable band steering to push devices toward 5 GHz. This is not what Toast requires.

Band steering is a suggestion, not a guarantee. A handheld that roams to the edge of 5 GHz coverage may fall back to 2.4 GHz — and on that band, it competes with microwaves, Bluetooth speakers, baby monitors from neighboring spaces, and every consumer device within range. The result is intermittent order delays that appear random because the frequency hop is invisible to the server carrying the handheld.

The fix: Create a dedicated 5 GHz-only SSID for Toast devices. In the UniFi Network application, set the WiFi Band to 5 GHz when creating or editing the wireless network. Assign this SSID to the Toast VLAN. Do not use band steering as a substitute.

2. Client Isolation Enabled on the Toast SSID

Client isolation prevents devices on the same SSID from communicating with each other. It is a standard security measure for guest Wi-Fi — and it will break Toast's local device communication.

Toast terminals, handhelds, printers, and KDS devices need to talk to each other on the local network. A handheld sends a print job to a kitchen printer over the LAN. A terminal acting as the local hub coordinates offline operations with other devices. Client isolation blocks all of this without an error message: the device appears connected, Wi-Fi signal is strong, and internet works — but print jobs do not reach the configured kitchen destination.

The fix: Disable client isolation on the Toast SSID and VLAN. In UniFi, this is the "Client Device Isolation" toggle under the wireless network's advanced settings. Guest isolation belongs on the guest network, not on the POS network.

For background on how VLANs separate traffic without client isolation, see VLANs Without the Jargon.

3. Multicast, Bonjour, and UPnP Not Properly Configured

Toast relies on several local network communication mechanisms, and each serves a different purpose:

• Bonjour (mDNS) enables device discovery — printers, KDS units, and terminals find each other on the local network through mDNS announcements.
• UPnP multicast is specifically required for Offline Mode with local sync. Toast's documentation states that Universal Plug-and-Play multicast traffic must be enabled on the network router for KDS devices to continue receiving tickets during an outage. This refers to LAN-side multicast communication between Toast devices — it does not mean enabling automatic WAN-facing UPnP port mapping, which is a separate router feature with its own security considerations.
• Same-subnet reachability is the foundation. All Toast devices — wired and wireless — must be on the same VLAN and subnet. At least one hardwired non-Elo V1 Toast device must be on the network to act as the local hub for offline communication.

If any of these are misconfigured, the symptoms vary. Blocked Bonjour may prevent printers from being discovered. Disabled UPnP multicast may allow normal online operation but cause KDS failures during an outage — a problem that only surfaces when the internet drops. And if the Toast SSID is on a different VLAN than wired Toast printers, print routing fails regardless of multicast settings — Toast's own documentation warns that the wireless SSID must belong to the same VLAN as the wired POS network.

The fix: Enable Bonjour (mDNS) and UPnP multicast on the Toast VLAN. In UniFi, verify that multicast DNS is allowed and that no firewall rules block multicast traffic within the VLAN. Note that UniFi's mDNS proxy is designed for forwarding discovery between VLANs — since Toast devices should all be on the same VLAN, the primary concern is ensuring mDNS and multicast work within that VLAN, not across VLANs. Disable client isolation on the Toast network (see above), and confirm that all Toast devices share the same VLAN and subnet.

RF Coverage: Design for the Handheld, Not the Empty Dining Room

Toast requires that wireless signal strength never drops below -65 dBm in any area where handhelds will access the network. Below that threshold, expect order-sending delays, handheld sync failures, and intermittent disconnections that are difficult to reproduce because they depend on the server's exact position.

The problem with designing for a minimum is that restaurants are not static environments. A dining room that measures -60 dBm at 10 AM with empty tables can drop below -65 dBm at 7 PM when:

• Human bodies absorb RF. A full dining room at capacity attenuates signal far more than an empty one. The walk test must account for peak occupancy, not just the installer's convenience.
• Stainless steel and commercial equipment reflect and block signal. The kitchen line, walk-in coolers, hood systems, and metal shelving create dead zones that do not appear on a coverage map drawn from the dining room.
• The host stand and expo window are transition zones. Handhelds roam between APs as servers move through the space. If coverage is marginal at the handoff point, the device drops and reconnects — causing a delay that the server may not notice until the order fails to send.
• Patios and outdoor seating extend the coverage requirement beyond the building envelope, where interior APs may not reach.

Access points must be installed in centrally located ceiling positions away from EMI sources — microwaves, speakers, refrigerator motors, and commercial kitchen equipment all generate interference that degrades 5 GHz signal.

iFeelTech's operational preference: Design for -55 dBm or better across all Toast service zones, not the -65 dBm floor. The 10 dB margin absorbs peak-hour attenuation, minor AP degradation, and the inevitable table that ends up directly behind a steel column that was not in the original floor plan. A real heatmap or walk-test measurement from each zone — not a predictive model — should validate coverage before going live.

Cabling and Documentation Are Recovery Controls

Every cable, outlet, patch-panel port, switch port, and connected device in a restaurant network should be labeled, documented, and traceable from end to end. This is not administrative overhead — it is the difference between a targeted 5-minute fix and a 45-minute diagnostic exercise while the restaurant is open.

This is a pattern we encounter regularly: a terminal or printer stops working, and the first question is "which cable feeds that device?" At documented sites, the technician checks the port map, finds the switch port, and either sees a link-down indicator or tests the cable. At undocumented sites, the technician traces cables through walls, under counters, and behind equipment — sometimes requiring production devices to be unplugged for identification. During service hours, that investigation may not be practical.

Minimum Labeling Standard

• Both ends of every cable run get a matching unique ID.
• Wall outlet and patch-panel port match the cable ID.
• Switch port recorded against the cable/drop ID.
• Device labels use plain-language names: BAR-POS-01, KITCHEN-KDS-02, EXPO-PRINTER-01, PATIO-AP-01.
• Ownership boundary clearly marked: Toast-managed versus restaurant/IT-managed equipment.
• ISP circuit, modem, UPS feeds, and uplinks identified and labeled.

Redacted Port-Map Example

This kind of map — printed, laminated, and stored in the rack — saves more time in an outage than any single piece of networking equipment. For full guidance on structured cabling standards, see the Network Cabling Checklist and Business Network Wiring Installation Guide. For RJ45 termination and the T568B standard that Toast requires, see the RJ45 Wiring Diagram Guide.

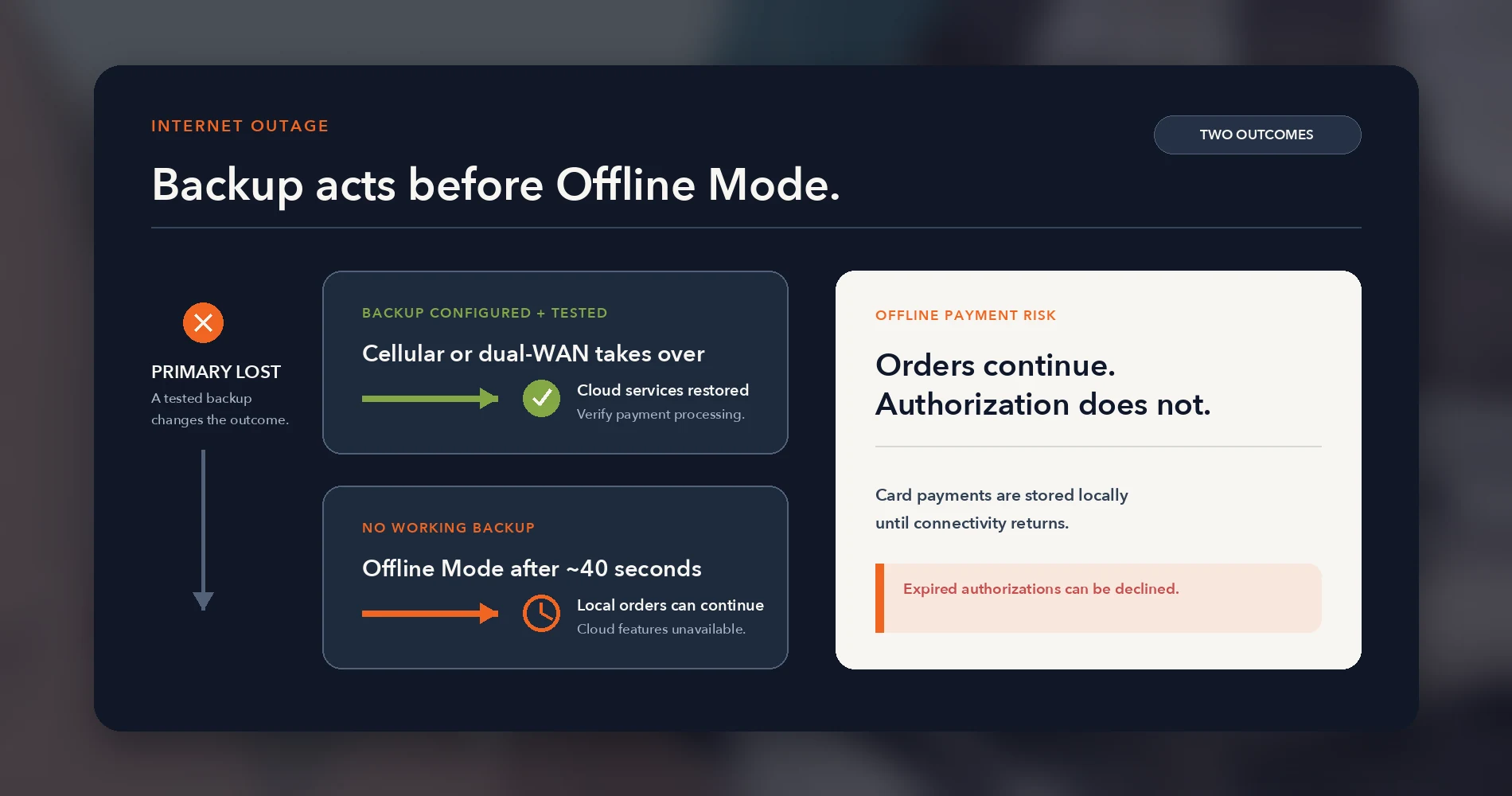

Primary and Backup Internet Without Mixing Deployment Models

A restaurant that loses internet during service loses the ability to authorize card payments in real time, sync orders to the cloud, receive online orders, and operate cloud-dependent features. Toast devices enter Offline Mode automatically after approximately 40 seconds without a connection. The POS continues taking orders and processing card payments locally, and KDS devices can continue receiving tickets if UPnP multicast is enabled and a supported hardwired device is acting as the local hub. But Offline Mode does not eliminate the risk.

Card payments taken while offline cannot be authorized until connectivity returns. Toast warns that authorizations may expire — in some cases as early as 24 hours — and the payment can be declined after the fact. Toast's own documentation recommends considering a cellular backup connection specifically to help prevent declined payments from expired authorizations. External online orders and other cloud-dependent features are also unavailable during an outage.

How Backup Connectivity Works Across Deployment Models

Toast-managed with Toast Router (Pronto). The current Toast Router includes a SIM card slot and supports an optional cellular subscription purchased through the Toast Shop. When the wired internet connection drops, the router automatically switches to cellular within approximately 10 seconds. A blue indicator light confirms active cellular use. This is the simplest backup path for managed deployments because it stays within Toast's support boundary.

Toast-managed with older equipment. Locations with Meraki-era or earlier Toast-managed stacks may not have the same cellular backup capability. Do not assume that a managed deployment includes automatic failover — verify with Toast what backup options apply to the specific hardware generation at each location.

Self-managed network. The restaurant's IT provider designs and owns the backup path. Options include dual-WAN with a second ISP, a 5G cellular failover module, or a dual-WAN gateway configuration. The key design constraint: the backup connection must serve the Toast VLAN, and failover must be tested — not assumed — before relying on it during a real outage.

Regardless of the model, test failover regularly. A SIM that expired three months ago or a backup circuit that was never properly configured provides no protection during an actual outage.

For a deeper look at what business internet uptime commitments actually mean and how repair-time guarantees work, see the Business Internet SLA Guide.

Pre-Opening and Post-Change Validation

Every new Toast installation and every significant network change should end with a structured validation sequence before the restaurant opens for service. Running these checks during a quiet period avoids discovering problems under operational load.

Validation Sequence

1. Topology and ownership confirmation. Verify that the as-built documentation matches the physical installation. Confirm which equipment belongs to the Toast-managed stack (if applicable) and which belongs to the restaurant's network. Update the port map if anything changed during installation.

2. Wired link test. Confirm every wired Toast device — terminals, printers, KDS — has an active link on the correct switch port and VLAN. Check for link-speed mismatches and verify that each device receives a valid IP address via DHCP.

3. Handheld walk test. Carry a Toast handheld through every service zone: host stand, dining room (including corners and booths), bar, expo/pass, kitchen edge, patio, and back office. Verify that signal strength stays above -65 dBm (preferably -55 dBm) and that the device does not drop or roam excessively between APs.

4. Printer and KDS path test. Send a test order from each terminal and handheld to every configured printer and KDS. Confirm that kitchen tickets, bar tickets, and receipt printers all receive the correct output. This tests the Bonjour/multicast path, VLAN configuration, and print routing in one pass.

5. Reboot recovery. Power-cycle the router, switch, and one AP to confirm the network recovers from a power interruption without manual intervention. Important safeguards: perform this test only during a planned maintenance window, never during active service. Confirm that no payments are pending or in offline-authorization state before cycling power. If the deployment is Toast-managed, coordinate with Toast before power-cycling managed equipment. And never reboot equipment during an active Toast service disruption — Toast warns that restarting during an outage can cause printing failures and stranded payments.

6. Failover test (where supported). If the deployment includes a cellular backup or dual-WAN, disconnect the primary circuit and verify that failover engages, Toast remains operational, and payments process. Reconnect primary and confirm restoration.

7. Documented rollback. If any step fails, have a documented path back to the previous working state. For new installations, this may mean reverting to the Toast-managed stack if a self-managed design is not yet validated.

Record the results. The test record becomes part of the site's operational documentation and establishes a known-good baseline for future troubleshooting.

Which Network Model Fits This Restaurant?

This is a support decision disguised as a technology question. The right model depends on the restaurant's IT capabilities, risk tolerance, and operational priorities — not on a preference for one hardware brand over another.

The decision is also not permanent. A restaurant that starts with a managed network can transition to self-managed later as its IT capabilities mature, and a restaurant that struggles with self-managed support gaps can ask Toast about managed options. The ownership model should match the restaurant's current operational reality, not an aspirational infrastructure vision.

If You Have Not Chosen a POS Yet

If you are evaluating POS platforms for a new restaurant or a replacement, the network ownership model should be part of that evaluation — not an afterthought discovered during installation. Toast supports both managed and self-managed networks, offers integrated hardware and software, and processes payments on its own platform. That vertical integration simplifies the support path in ways that matter when connectivity fails during service.
