UniFi Dream Machine Pro Max Review 2026: The Rack Gateway for Growing Business Networks

The UniFi Dream Machine Pro Max (UDM Pro Max) is Ubiquiti's flagship 1U rackmount gateway for mid-size business networks. At $599, it delivers 5 Gbps IDS/IPS throughput, dual 3.5" HDD bays for RAID 1 surveillance storage, Shadow Mode (VRRP) gateway failover, and a unified controller for your entire UniFi ecosystem — networking, cameras, door access, and VoIP in one device. We've been deploying this unit across client racks for over 18 months and testing every major firmware release since launch, including Network 10.2.

The UniFi Dream Machine Pro Max remains Ubiquiti's primary rack gateway for SMB deployments heading into mid-2026. This review covers real-world throughput benchmarks, Shadow Mode (High Availability) failover, CyberSecure threat protection, UniFi Network 10.2, and a detailed comparison against the $199 Cloud Gateway Max.

Editor's Choice

Top Pick 4.7/5

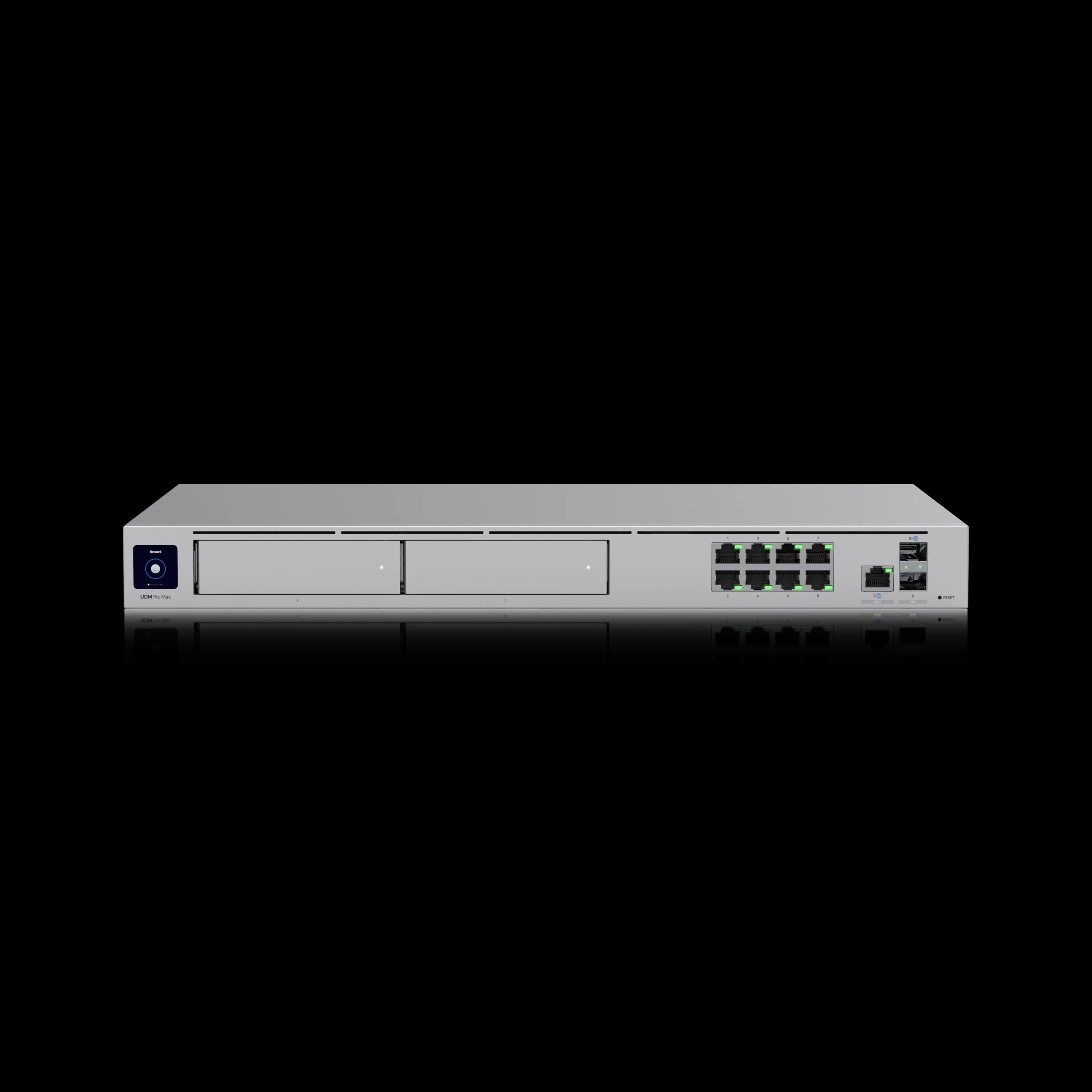

UniFi Dream Machine Pro Max

Ubiquiti's 1U rackmount gateway for mid-size business networks. Delivers 5 Gbps IDS/IPS throughput, dual HDD bays for RAID 1 NVR, and Shadow Mode (VRRP) for gateway failover.

• 5 Gbps IDS/IPS Throughput
• 2x 10G SFP+ Ports
• Shadow Mode (High Availability)
• Dual 3.5" HDD Bays (RAID 1)

$599 | UI Store

*Price at time of publishing

May 2026 Platform Update

Two significant Ubiquiti releases have shipped since this review was last updated in March 2026.

Dream Machine Beast (April 29, 2026): Ubiquiti launched the Dream Machine Beast at $1,499 — a new enterprise-tier gateway built on ARM Neoverse N2 compute with 25 Gbps IDS/IPS throughput, 7,500+ client capacity, and 750+ managed cameras. Important context: the Beast is not a UDM Pro Max replacement. It sits one tier above the Pro Max in the lineup, targeting deployments that have outgrown 5 Gbps IDS/IPS or need to manage hundreds of cameras at scale. The UDM Pro Max remains Ubiquiti's current recommendation for rack-based SMB networks up to 200+ devices — a ceiling that covers the vast majority of small and mid-size business environments. See our Dream Machine Beast vs Pro Max comparison if you're evaluating both.

UniFi Protect 7.0 (March 17, 2026): Protect 7.0 is fully compatible with the UDM Pro Max and adds material capabilities for businesses using the gateway as their NVR. Key additions: a fully customizable live view dashboard with drag-and-resize camera streams; AI-powered image search across your entire camera deployment (requires a separately purchased UniFi AI Key — processing runs locally, no cloud dependency); smarter storage budgeting that automatically extends recording retention without sacrificing critical footage; and real-time offsite backup of detection clips as they happen. If you're using the UDM Pro Max for camera management, Protect 7.0 adds meaningful capability at no additional hardware cost.

Shadow Mode production status: Shadow Mode (VRRP) has been stable in production for 12+ months across our client deployments since OS 4.0.6. Businesses that deferred HA deployments while the feature matured can deploy with confidence.

Network 10.2 remains current: No 10.3 release as of May 12, 2026. The features documented in this review — Digital Twin topology, Time Machine for switch history, Enhanced Open (OWE) WiFi, and Device Supervisor — are all current.

Build Quality and Design

The Pro Max maintains the familiar 1U rackmount form factor at 10.4 lbs (4.7 kg). The front panel features an improved LED status ring and a 1.3-inch touchscreen for local monitoring. Larger side vents and redesigned airflow manage the increased thermal load from dual storage drives. Acoustically, the unit runs near-silent at idle, though fan speed ramps up noticeably under sustained 5 Gbps IDS/IPS loads — typical for rackmount gear, but worth noting if the rack is in an open office.

The increased power draw (60W max) compared to the standard UDM Pro (48W) reflects the enhanced processing capabilities and dual storage support.

How Fast Is the UDM Pro Max with IDS/IPS Enabled?

The UDM Pro Max delivers 5.0 Gbps routing throughput with full IDS/IPS enabled on a standard DHCP connection, confirmed via iPerf3 testing.

Our lab results align with Ubiquiti's official ratings across several real-world configurations:

The standard UDM Pro typically reaches 3.5 Gbps with IDS/IPS active. The Pro Max's 5 Gbps ceiling gives businesses running multi-gigabit internet plans room to run full security without throttling throughput. These benchmarks were measured on a standard DHCP connection; if your ISP requires PPPoE, throughput with IDS/IPS enabled may be lower due to the ARM Cortex-A57's lack of dedicated PPPoE offloading.

Network Management Capabilities

In our testing with eight U7 Pro access points across a single site, the Pro Max showed no measurable performance drop in throughput or management response time:

• Device Capacity: 200+ UniFi devices / 2,000+ clients (double the standard UDM Pro)
• Access Point Management: Tested with 8 × U7 Pro units without performance degradation
• VLAN Performance: Complex inter-VLAN routing maintained line-rate speeds
• VPN Throughput: Site-to-site connections maintained 2.5+ Gbps with WireGuard encryption
  • IPSec: 1.8-2.2 Gbps (typical business VPN)
  • WireGuard: 2.5+ Gbps (modern, efficient protocol)
  • L2TP: 800-1,200 Mbps (legacy compatibility)

Storage and RAID Performance

The dual 3.5-inch drive bays enable RAID 1 configuration for video surveillance redundancy. Note that HDDs are not included with the $599 unit — budget an additional ~$140–280 for one or two surveillance drives (e.g., WD Purple 4TB).

• Write Performance: 150 MB/s sustained to RAID 1 array
• Simultaneous Streams: 20+ 4K cameras without recording interruption
• Built-in SSD: 128GB for OS and detection recordings
• Hot-Swap Support: Drive replacement without system shutdown

What Is UniFi CyberSecure?

CyberSecure is a $99/year local threat management service powered by Proofpoint that provides content filtering and 110,000+ IDS/IPS threat signatures.

Unlike cloud-based filtering, CyberSecure processes threats locally on the UDM Pro Max to maintain low latency. Your traffic stays on-device and does not pass through a third-party inspection service. Setup is managed directly within the UniFi Site Manager — enable it with one click, then choose between monitoring-only or automatic blocking modes.

• Threat Intelligence: 110,000+ threat signatures with weekly updates (30–50 new signatures via Proofpoint and Microsoft MAPP)
• Content Filtering: Cloudflare-powered filtering with 100+ granular categories
• Geographic Blocking: Block traffic by country or region for both inbound and outbound connections
• Threat Prevention: Automatic blocking of known malicious IP addresses and domains
• Compliance Support: Enhanced logging and reporting capabilities for regulatory requirements

While the base UniFi OS includes standard firewall features, the CyberSecure subscription adds granular category blocking and geographic traffic restrictions suitable for business compliance. For a deeper look at implementation, see our CyberSecure setup guide.

How Does Site Magic SD-WAN Connect Multiple Offices?

Site Magic creates automated WireGuard tunnels between UniFi gateways — the UDM Pro Max supports up to 200 hub-and-spoke tunnels or 20 mesh sites, with no licensing fees.

UniFi's Site Magic SD-WAN connects multiple office locations through automated peer-to-peer tunnels managed from Site Manager — no static IPs, no manual VPN setup required.

In multi-location deployments, Site Magic has noticeably reduced our team's VPN configuration time. Connecting two offices that would have taken a half-day of manual VPN setup now takes under 10 minutes through Site Manager.

What Can the UDM Pro Max Manage Beyond Networking?

The UDM Pro Max acts as a unified controller for UniFi Protect (cameras), Access (door locks), and Talk (VoIP) alongside your network.

Beyond routing, the Pro Max serves as the local controller for the broader UniFi application stack. If your business uses multiple UniFi products, consolidating management onto a single device simplifies day-to-day operations.

Unified Management Advantages

Running everything through a single platform has practical day-to-day benefits:

• Single Interface: Manage networking, security cameras, door access, and phone systems from one platform
• Integrated Reporting: Consolidated security events, network performance, and access control logs
• Simplified Troubleshooting: Cross-system visibility enables faster problem resolution
• Reduced Vendor Complexity: Single support relationship instead of multiple vendor coordination

UniFi Protect 7.0 on UDM Pro Max (available now): The March 2026 Protect update adds meaningful capability to the NVR use case. The redesigned dashboard lets you customize live view layouts — drag, resize, and prioritize camera streams to match how you actually work. AI-powered image search (requires a separately purchased UniFi AI Key) lets you upload a reference image and find matches across your entire camera deployment instantly, with all inference running locally on the device. Smarter storage budgeting automatically extends recording retention without overwriting critical footage. Real-time offsite detection backup sends a second copy of detection clips to your chosen destination as they're captured — not as a scheduled job. If you're running the Pro Max as your NVR, updating to Protect 7.0 is worth doing now.

Professional Installation Perspective

Through 2026, the UDM Pro Max has become our default recommendation for rack-based client deployments. The Cloud Gateway Max works well for home offices and small teams, but for any business with a rack and growth plans, the Pro Max provides the headroom we look for in a multi-year deployment.

How Does UniFi Shadow Mode Work?

Shadow Mode uses VRRP to provide automatic network failover by maintaining a standby gateway that takes over if the primary unit fails.

This high-availability feature requires two identical rackmount UniFi gateways wired together via a dedicated heartbeat connection. The standby unit continuously monitors the primary gateway's health, and configuration changes are synchronized automatically. If a hardware failure occurs, the backup assumes gateway responsibilities with minimal disruption — no manual cable swapping or cloud backup restores required.

Shadow Mode is available on UDM Pro Max, UDM Pro, UDM SE, and EFG (requires UniFi OS v4.0.6+). It operates in active-passive mode — the standby unit does not share traffic load during normal operation, only taking over when the primary fails. Actual failover speed depends on network topology and WAN configuration.

Business Continuity Benefits:

• Automatic Failover: VRRP-based switchover designed to minimize downtime when primary gateway fails
• Manual Failover: Controlled maintenance windows without network downtime
• Configuration Sync: Backup gateway maintains identical settings
• Health Monitoring: Continuous heartbeat checks ensure rapid failure detection

Shadow Mode is most relevant for businesses where network downtime costs $500+ per hour, healthcare facilities requiring continuous connectivity, financial services with compliance requirements, and manufacturing operations with network-dependent equipment.

What's New in UniFi Network 10.2?

UniFi Network 10.2, released March 12, 2026, adds Digital Twin topology visualization, Time Machine for switch history, Enhanced Open (OWE) WiFi mode, and automatic Device Supervisor recovery.

This update is relevant for UDM Pro Max users managing complex rack environments. Key features:

• Time Machine for Switches: Historical port state visualization that lets you pinpoint exactly when a port changed state and why — useful for troubleshooting intermittent issues without parsing syslogs
• Digital Twin Topology: A real-time infrastructure view of your rack connections, uplinks, and device interconnections, making it easier to understand the blast radius during an outage
• Enhanced Open (OWE): WPA3-grade encryption for guest and public WiFi networks without requiring a password — ready for modern smartphones and laptops
• Device Supervisor: Automatic detection and power-cycling of unresponsive PoE devices, reducing the need for manual intervention or on-site visits
• STP Edge Mode + One-Click Rollback: Tighter control over edge devices and firmware safety nets for quick recovery

For the full announcement, see the Ubiquiti blog post on Network 10.2.

UDM Pro Max vs. Cloud Gateway Max: Which Is Better for Your Business?

Choose the $599 UDM Pro Max for rackmount deployments with RAID storage and 5 Gbps routing, or the $199 Cloud Gateway Max for compact desktop setups under 30 devices.

The $199 Cloud Gateway Max is sold diskless — storage must be added separately via an optional NVMe SSD. For a detailed look at the UCG Max, see our full review. Here is how the two products differ:

Specs	Best for Business UDM Pro Max $599 | UI Store	Best Value Cloud Gateway Max $199 | UI Store
Best For	Rack-mount Business	Desktop / Small Office
High Availability	Shadow Mode (VRRP)	Site Magic Only (No VRRP)
IDS/IPS Throughput	5.0 Gbps	2.3 Gbps (OS 4.1+)
Storage	2x 3.5" HDD (RAID 1)	Optional NVMe SSD ($279 SKU)
Device Limit	200+	~30
Ports	2x 10G SFP+ + 2.5G RJ45	4x 2.5G RJ45
Form Factor	1U Rackmount	Compact Desktop
	$599 | UI Store	$199 | UI Store

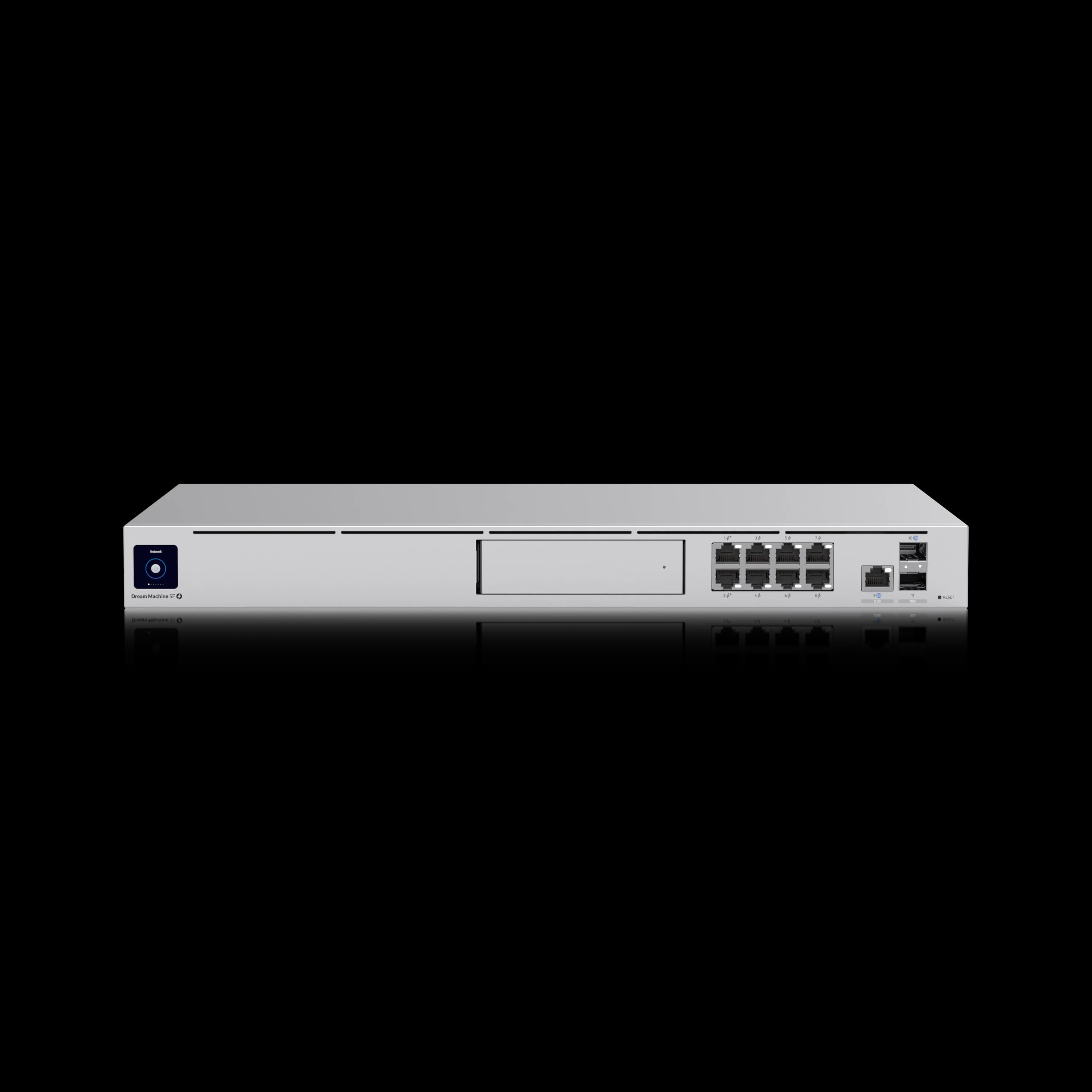

How Does the UDM Pro Max Compare to the UDM Pro and UDM SE?

Specs	Recommended UDM Pro Max $599 | UI Store	Budget Rack Option UDM Pro $379 | UI Store	Built-in PoE UDM SE $499 | UI Store
WAN Ports	2x 10G SFP+ + 1x 2.5G RJ45	1x 10G SFP+ + 1x 1G RJ45	1x 10G SFP+ + 1x 2.5G RJ45
LAN Ports	1x 10G SFP+ + 8x 1G RJ45	1x 10G SFP+ + 8x 1G RJ45	1x 10G SFP+ + 8x 1G RJ45
IDS/IPS Throughput	5.0 Gbps	3.5 Gbps	3.5 Gbps
Device Capacity	200+ devices / 2,000+ clients	100+ devices / 1,000+ clients	100+ devices / 1,000+ clients
Storage	2x 3.5" HDD + 128GB SSD	1x 3.5" HDD bay	1x 3.5" HDD + 128GB SSD
PoE	None (requires switch)	None (requires switch)	8 ports / 180W (2x PoE+, 6x PoE)
Shadow Mode	Yes	Yes (OS 4.0.6+)	Yes (OS 4.0.6+)
	$599 | UI Store	$379 | UI Store	$499 | UI Store

When the Additional Investment Makes Sense

Business Implementation Scenarios

Scenario 1: Professional Services Firm (35 Employees)

Client Profile: Legal firm with document-heavy workflows and client confidentiality requirements

Network Requirements:

• Secure document storage and access
• Video conferencing for client meetings
• VLAN segmentation for guest access
• Backup internet connection for business continuity

UDM Pro Max Benefits: The 2.5G WAN port enables cost-effective backup internet service while maintaining security performance. RAID storage protects security footage and provides redundancy for surveillance systems. Enhanced VLAN processing supports complex network segmentation without performance penalties. CyberSecure subscription provides enterprise-grade threat protection at $99 annually.

Recommended Configuration: UDM Pro Max + CyberSecure + Pro Max 24 PoE switch (2.5G ports required for WiFi 7 APs) + 3 × U7 Pro access points + RAID storage (~$2,900 total including first-year security service)

Scenario 2: Manufacturing Company (50 Employees)

Client Profile: Small manufacturing operation with office and production floor networking needs

Network Requirements:

• Reliable connectivity for production equipment
• Separate networks for office and industrial devices
• Security cameras throughout the facility
• Remote access for equipment monitoring

UDM Pro Max Benefits: Enhanced device capacity supports both office devices and industrial IoT equipment. Dual storage enables comprehensive video surveillance with redundancy. Advanced security features through CyberSecure protect against industrial network threats. Site Magic SD-WAN enables secure connectivity to remote monitoring systems.

Recommended Configuration: UDM Pro Max + CyberSecure + industrial PoE switch + 6 × access points + surveillance drives (~$4,000 total)

Scenario 3: Technology Startup (25 Employees, Rapid Growth)

Client Profile: Software development company planning to double headcount within 18 months

Network Requirements:

• High-bandwidth development environment
• Network infrastructure that scales with growth
• Development and production network isolation
• Comprehensive security for intellectual property

UDM Pro Max Benefits: Double the device capacity, which provides a growth runway without infrastructure replacement. Enhanced IDS/IPS through CyberSecure protects development assets while maintaining performance. Multiple VLAN support enables proper environment separation. Site Magic facilitates secure remote developer access.

Recommended Configuration: UDM Pro Max + CyberSecure + Pro Max 24 PoE switch (2.5G uplinks for WiFi 7 APs) + 4 × U7 Pro access points + expansion planning (~$3,700 total)

Who Should Skip the UDM Pro Max?

Skip the UDM Pro Max if you lack a server rack, have fewer than 30 devices, or plan to connect WiFi 7 APs directly without a multi-gig switch.

The Pro Max is not the right fit for every network. Pass on it if any of the following apply:

• You don't have a server rack. The Pro Max is a 1U rackmount unit. Without a rack, you'll need a shelf mount or a desktop alternative like the Cloud Gateway Max.
• You plan to connect WiFi 7 APs directly to the gateway. The eight built-in RJ45 LAN ports are limited to 1 Gbps. Plugging a U7 Pro directly into the Pro Max bottlenecks it to 1 Gbps — you must add a 2.5G or 10G switch (e.g., UniFi Pro Max 24 PoE) to get full WiFi 7 speeds.
• Your device count is under 30. The Cloud Gateway Max handles up to ~30 devices cleanly at a third of the price. You'll be paying for capacity you don't need.
• You don't need gateway redundancy. Shadow Mode requires a second identical gateway. If failover isn't in your budget or requirements, the standard UDM Pro ($379) offers most of the same features at a lower price.
• You need PoE from your gateway. The Pro Max has zero PoE ports. All PoE devices require a separate switch investment.

What Does a Complete UDM Pro Max Deployment Cost?

A full UDM Pro Max deployment — including switching, wireless, UPS, and storage — typically runs $2,500–$3,000 for a mid-size office.

Reference Architecture (~$2,600)

This setup covers the basics for a professional office: routing, switching, wireless, UPS, and NVR storage. Adding CyberSecure ($99/year) extends it with managed threat filtering — a reasonable add-on once the core infrastructure is stable.

Budget-Conscious Alternative (~$1,900)

This alternative provides 80% of the Pro Max capabilities while reducing total investment by $719. Consider this option for businesses with current device counts under 50 and single storage requirements.

Installation and Initial Setup

Setup Process

The UDM Pro Max follows Ubiquiti's streamlined setup process with improvements for business deployment:

• Initial Configuration: 15-20 minutes through mobile app or web interface
• Network Migration: 2-4 hours for complex existing networks
• RAID Setup: 30 minutes for dual-drive configuration
• Security Configuration: 45-60 minutes for comprehensive policies

Common Setup Considerations

Several factors require attention during professional deployment:

• Rack Ventilation: Ensure 1U spacing for optimal cooling with dual drives
• Power Planning: Account for 60W consumption plus connected devices
• No PoE Output: The UDM Pro Max has zero PoE ports. Every access point and PoE device needs power from a PoE switch or injector — budget for this before ordering.
• WiFi 7 APs need a multi-gig switch: The built-in RJ45 LAN ports are 1 Gbps. U7 Pro access points require a 2.5G or 10G switch (e.g., UniFi Pro Max 24 PoE) to operate above 1 Gbps.
• Backup Strategy: Configure RAID 1 before installing cameras
• Network Migration: Plan a maintenance window for cutover if replacing an existing gateway
• Cable Infrastructure: Consider professional network cabling installation for optimal performance

Migrating from UDM Pro or UDM SE

If you're upgrading from a standard UDM Pro or UDM SE, migration is straightforward via UniFi OS Cloud Backup:

1. On the existing gateway, go to System → Backup → Create Backup in UniFi OS
2. Download the .unf backup file to your computer
3. Set up the new UDM Pro Max and complete initial configuration
4. Navigate to System → Backup → Restore and upload the backup file

In our experience, this restores network topology, VLANs, firewall rules, and device associations cleanly. Total downtime is typically under 15 minutes for a straightforward network. Complex configurations with custom routing or third-party integrations may need manual review after restore.

How Does UDM Pro Max TCO Compare Over Three Years?

Over three years, the UDM Pro Max costs approximately $896 total (with CyberSecure) versus $2,645+ for a Fortinet FortiGate 60F with licensing.

Three-Year Operating Cost Comparison

The Cisco Meraki MX68 (~$700 hardware) is another common enterprise comparison. Its licensing is mandatory at ~$250/year, and the device stops functioning entirely without an active subscription, which further widens the TCO gap.

Return on Investment

The three-year cost comparison above tells most of the story. The $220 premium over the UDM Pro buys you 5 Gbps IDS/IPS throughput (vs. 3.5 Gbps), an extra HDD bay for RAID 1, doubled device capacity (200+ vs. 100+), and 200 Site Magic VPN tunnels (vs. 100). Both models support Shadow Mode failover, but the Pro Max pairs it with the throughput and storage headroom that growing networks need.

What Are the Best Alternatives to the UDM Pro Max?

Within UniFi, the $379 UDM Pro covers most Pro Max capabilities; outside the ecosystem, the Fortinet FortiGate 60F and Cisco Meraki MX68 are the closest enterprise equivalents.

Within the UniFi Ecosystem

The standard UDM Pro remains a solid option for businesses with moderate growth expectations. It covers most Pro Max capabilities while saving $220. For a detailed breakdown, see our UDM Pro vs. Pro Max comparison. Consider the standard Pro if single storage meets your needs and device count stays under 75.

For deployments requiring 10G networking, 750+ managed device capacity, or 25 Gbps IDS/IPS throughput, the UniFi Dream Machine Beast ($1,499) is the top of the UniFi gateway lineup. Our Beast vs Pro Max comparison covers the four scenarios where the $900 premium is structurally justified.

Budget Rack Option

UniFi Dream Machine Pro

$379

80% of Pro Max capabilities at $220 less. 3.5 Gbps IDS/IPS, single HDD bay, suitable for businesses under 75 devices.

3.5 Gbps IDS/IPS1x 10G SFP+ WANSingle 3.5" HDD Bay

UI Store

For smaller offices that prefer simplified deployment without rack mounting, the Cloud Gateway Max is a compelling desktop alternative with modern 2.5G ports.

Best for Small Office

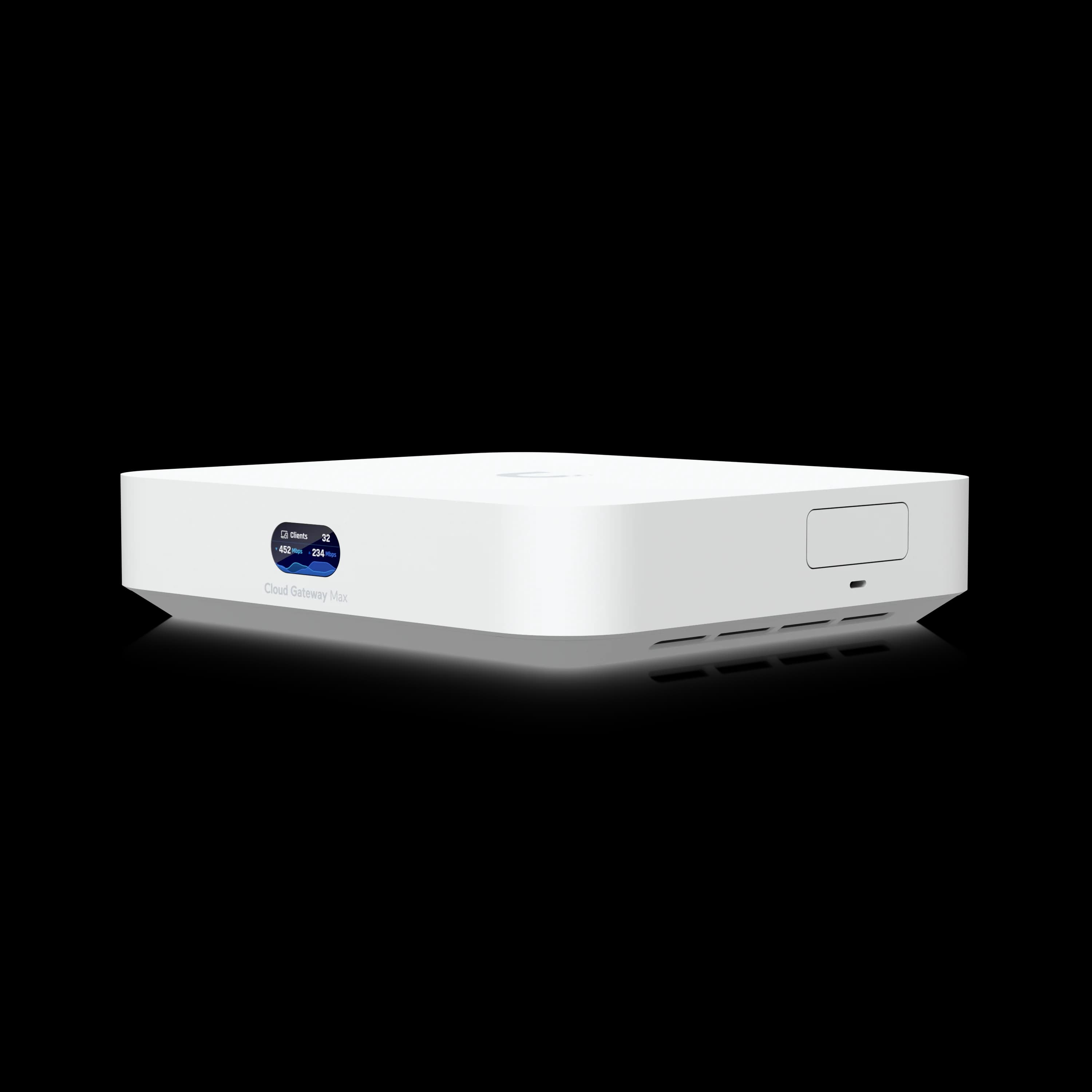

Cloud Gateway Max

$199

Compact desktop gateway with 2.3 Gbps IDS/IPS (OS 4.1+). Ideal for offices under 30 devices that don't need rack infrastructure.

2.3 Gbps IDS/IPS4x 2.5G RJ45 PortsCompact Desktop Form

UI Store

Alternative Platforms

pfSense + Netgate Hardware ($700–1,000)

Open-source alternative providing extensive customization options. Requires significant technical expertise but offers unlimited flexibility for specialized requirements. For a detailed comparison, see our pfSense vs. UDM Pro guide.

SonicWall TZ570 ($600)

Traditional security appliance with established enterprise support. Higher ongoing licensing costs, but includes vendor support and compliance certifications.

Final Assessment

For businesses already invested in the UniFi ecosystem and running a server rack, the Pro Max is the gateway we typically recommend first.

Need assistance implementing the UDM Pro Max in your business environment? Contact us for a personalized network assessment and implementation proposal.

Pricing and specifications accurate as of May 2026. Product availability varies by region.
