UniFi Dream Machine Pro Max Review (2026): The Standard for Rackmount Security?

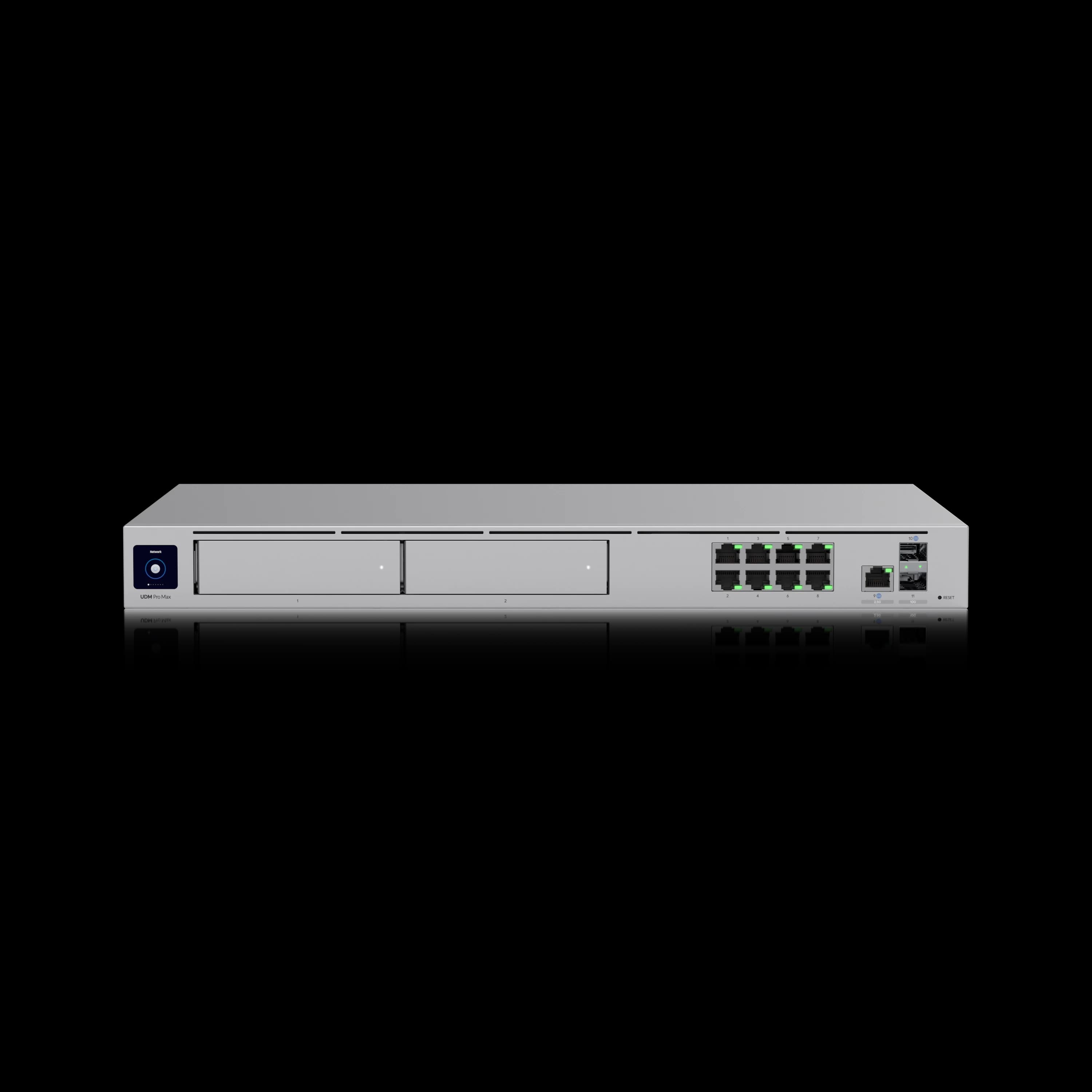

The UniFi Dream Machine Pro Max remains Ubiquiti's flagship rackmount gateway for 2026. After running this $599 device in our lab and client sites for over a year, we've updated this review to cover Shadow Mode (High Availability), CyberSecure threat protection, and how it compares against the newer Cloud Gateway Max.

---

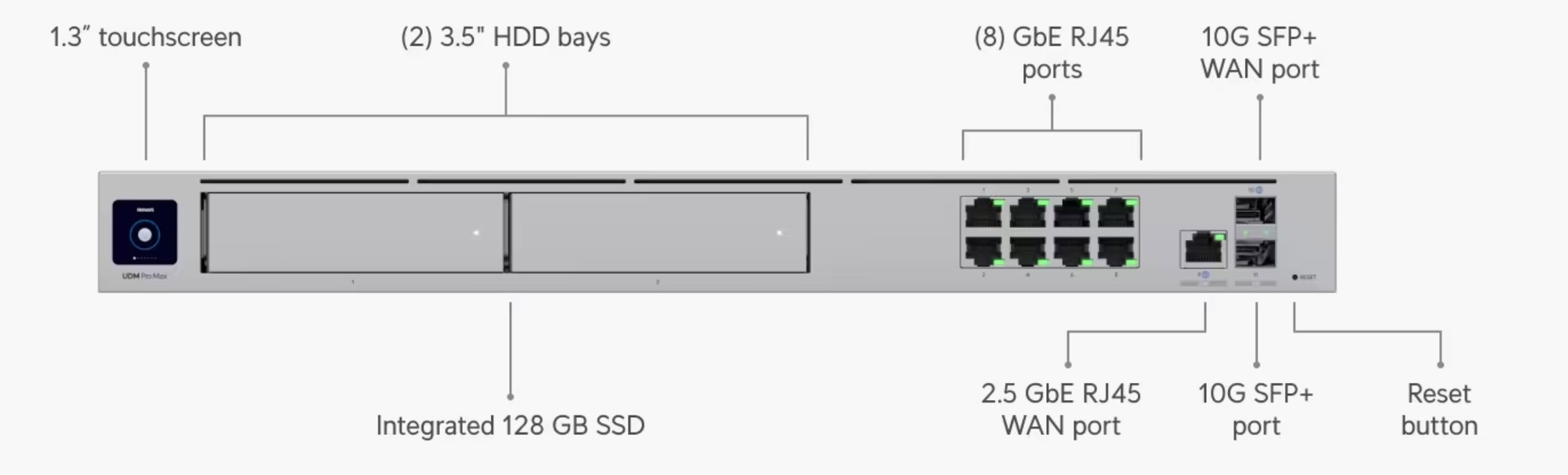

Build Quality and Design

The Pro Max maintains the familiar 1U rackmount form factor at 10.4 lbs (4.7 kg). The front panel features an improved LED status ring and a 1.3-inch touchscreen for local monitoring. Larger side vents and redesigned airflow manage the increased thermal load from dual storage drives. Acoustically, the unit runs near-silent at idle, though fan speed ramps up noticeably under sustained 5 Gbps IDS/IPS loads — typical for rackmount gear, but worth noting if the rack is in an open office.

The increased power draw (60W max) compared to the standard UDM Pro (48W) reflects the enhanced processing capabilities and dual storage support.

---

UDM Pro Max WAN Throughput and Routing Speeds

The UDM Pro Max delivers 5.0 Gbps of routing throughput with full IDS/IPS security enabled.

Our lab tests confirm Ubiquiti's official ratings across several real-world configurations:

The standard UDM Pro typically reaches 3.5 Gbps with IDS/IPS active. The Pro Max's 5 Gbps ceiling gives businesses running multi-gigabit internet plans room to run full security without throttling throughput.

Network Management Capabilities

In our testing with eight U7 Pro access points across a single site, the Pro Max showed no measurable performance drop in throughput or management response time:

• Device Capacity: 200+ UniFi devices / 2,000+ clients (double the standard UDM Pro)
• Access Point Management: Tested with 8 × U7 Pro units without performance degradation
• VLAN Performance: Complex inter-VLAN routing maintained line-rate speeds
• VPN Throughput: Site-to-site connections maintained 2.5+ Gbps with WireGuard encryption
  • IPSec: 1.8-2.2 Gbps (typical business VPN)
  • WireGuard: 2.5+ Gbps (modern, efficient protocol)
  • L2TP: 800-1,200 Mbps (legacy compatibility)

Storage and RAID Performance

The dual 3.5-inch drive bays enable RAID 1 configuration for video surveillance redundancy:

• Write Performance: 150 MB/s sustained to RAID 1 array
• Simultaneous Streams: 20+ 4K cameras without recording interruption
• Built-in SSD: 128GB for OS and detection recordings
• Hot-Swap Support: Drive replacement without system shutdown

---

How Do UniFi CyberSecure and Shadow Mode Work?

CyberSecure provides local threat filtering, while Shadow Mode enables automatic gateway failover via VRRP.

CyberSecure Features and Capabilities

CyberSecure runs locally on the gateway — threat filtering happens on-device, not in the cloud. This keeps latency low and means your traffic doesn't pass through a third-party inspection service:

• Threat Intelligence: 55,000+ threat signatures with weekly updates (30-50 new signatures)
• Advanced IDS/IPS: Proofpoint-powered intrusion detection with Microsoft MAPP integration
• Content Filtering: Cloudflare-powered filtering with 100+ granular categories
• Geographic Blocking: Block traffic by country or region for both inbound and outbound connections
• Memory Optimization: Intelligent signature management to maintain performance on resource-constrained systems

What CyberSecure Actually Does

For most small businesses, CyberSecure covers the security bases that previously required a separate appliance or cloud service. In practice, it does four things well:

• Threat Prevention: Automatic blocking of known malicious IP addresses and domains
• Policy Enforcement: Granular content filtering for productivity and compliance
• Incident Reduction: Proactive threat detection reduces security incidents requiring manual intervention
• Compliance Support: Enhanced logging and reporting capabilities for regulatory requirements

Enabling and Managing CyberSecure

CyberSecure is configured through the UniFi Site Manager interface. Setup is straightforward for anyone comfortable with the UniFi dashboard:

• One-Click Activation: Enable CyberSecure directly from Site Manager
• Detection vs. Prevention: Choose between monitoring-only or automatic blocking modes
• Category Controls: Fine-tune protection levels by threat type and content category
• Performance Monitoring: Real-time visibility into blocked threats and filtered content

---

Site Magic SD-WAN: Multi-Location Connectivity Without the Complexity

UniFi's Site Magic SD-WAN is a license-free service that connects multiple office locations through automated peer-to-peer tunnels managed from Site Manager — no static IPs, no manual VPN setup. It supports hub-and-spoke topologies up to 1,000 sites, or direct mesh connections across up to 20 locations, all at no additional licensing cost.

In multi-location deployments, Site Magic has been the single biggest time-saver for our team. Connecting two offices that would have taken a half-day of VPN configuration now takes under 10 minutes. The catch: all sites need to be running UniFi gateways.

---

UniFi Ecosystem: One Controller for Everything

The UDM Pro Max acts as the local controller for the broader UniFi stack — not just networking, but also UniFi Protect (cameras), UniFi Access (door control), and UniFi Talk (VoIP). If your business uses multiple UniFi products, this matters.

Unified Management Advantages

Running everything through a single platform has practical day-to-day benefits:

• Single Interface: Manage networking, security cameras, door access, and phone systems from one platform
• Integrated Reporting: Consolidated security events, network performance, and access control logs
• Simplified Troubleshooting: Cross-system visibility enables faster problem resolution
• Reduced Vendor Complexity: Single support relationship instead of multiple vendor coordination

Professional Installation Perspective

Through 2026, the UDM Pro Max has become our default standard for rack-based client deployments. The Cloud Gateway Max is great for home offices, but for any business with a rack, the Pro Max is the minimum viable product we recommend to ensure longevity.

Shadow Mode: Automatic Gateway Failover

Shadow Mode (VRRP — Virtual Router Redundancy Protocol) lets you configure a second UDM Pro Max as a standby unit. If the primary gateway fails, the backup takes over automatically — with no manual intervention required.

How Shadow Mode Works:

Shadow Mode allows you to configure a backup UDM Pro Max that monitors the primary gateway's health. If the primary unit fails, the backup automatically assumes gateway responsibilities within seconds, maintaining network connectivity with minimal disruption.

Business Continuity Benefits:

• Automatic Failover: Sub-10 second switchover when primary gateway fails
• Manual Failover: Controlled maintenance windows without network downtime
• Configuration Sync: Backup gateway maintains identical settings
• Health Monitoring: Continuous heartbeat checks ensure rapid failure detection

Typical Use Cases:

• Businesses where network downtime costs $500+ per hour
• Healthcare facilities requiring continuous connectivity
• Financial services with compliance requirements
• Manufacturing operations with network-dependent equipment
• Multi-location operations managing critical systems

---

Should You Buy the UDM Pro Max or Cloud Gateway Max?

Choose the UDM Pro Max for rackmount redundancy, or the Cloud Gateway Max ($199, diskless) for small desktop setups.

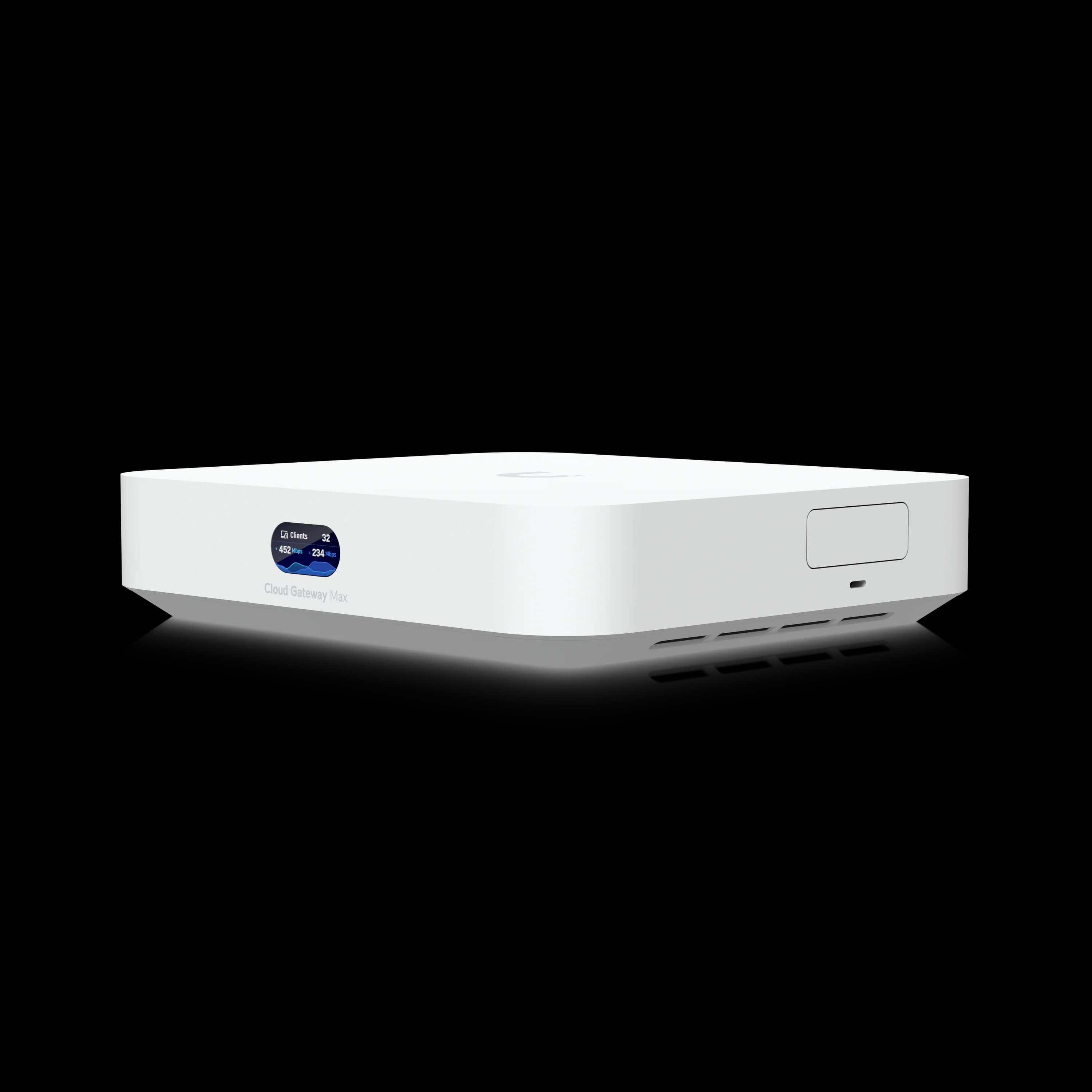

The $199 Cloud Gateway Max is sold diskless — storage must be added separately via the $279 NVMe SSD SKU. This has caused some buyer confusion when comparing it against the Pro Max's included dual HDD bays. Here is how the two products actually differ:

---

Comparison with Standard UDM Pro and UDM SE

When the Additional Investment Makes Sense

---

Business Implementation Scenarios

Scenario 1: Professional Services Firm (35 Employees)

Client Profile: Legal firm with document-heavy workflows and client confidentiality requirements

Network Requirements:

• Secure document storage and access
• Video conferencing for client meetings
• VLAN segmentation for guest access
• Backup internet connection for business continuity

UDM Pro Max Benefits: The 2.5G WAN port enables cost-effective backup internet service while maintaining security performance. RAID storage protects security footage and provides redundancy for surveillance systems. Enhanced VLAN processing supports complex network segmentation without performance penalties. CyberSecure subscription provides enterprise-grade threat protection at $99 annually.

Recommended Configuration: UDM Pro Max + CyberSecure + Pro Max 24 PoE switch (2.5G ports required for WiFi 7 APs) + 3 × U7 Pro access points + RAID storage (~$2,900 total including first-year security service)

Scenario 2: Manufacturing Company (50 Employees)

Client Profile: Small manufacturing operation with office and production floor networking needs

Network Requirements:

• Reliable connectivity for production equipment
• Separate networks for office and industrial devices
• Security cameras throughout the facility
• Remote access for equipment monitoring

UDM Pro Max Benefits: Enhanced device capacity supports both office devices and industrial IoT equipment. Dual storage enables comprehensive video surveillance with redundancy. Advanced security features through CyberSecure protect against industrial network threats. Site Magic SD-WAN enables secure connectivity to remote monitoring systems.

Recommended Configuration: UDM Pro Max + CyberSecure + industrial PoE switch + 6 × access points + surveillance drives (~$4,000 total)

Scenario 3: Technology Startup (25 Employees, Rapid Growth)

Client Profile: Software development company planning to double headcount within 18 months

Network Requirements:

• High-bandwidth development environment
• Network infrastructure that scales with growth
• Development and production network isolation
• Comprehensive security for intellectual property

UDM Pro Max Benefits: Double the device capacity, which provides a growth runway without infrastructure replacement. Enhanced IDS/IPS through CyberSecure protects development assets while maintaining performance. Multiple VLAN support enables proper environment separation. Site Magic facilitates secure remote developer access.

Recommended Configuration: UDM Pro Max + CyberSecure + Pro Max 24 PoE switch (2.5G uplinks for WiFi 7 APs) + 4 × U7 Pro access points + expansion planning (~$3,700 total)

---

---

Who Should NOT Buy the UDM Pro Max

Buying the wrong gateway is an expensive mistake. Skip the UDM Pro Max if any of the following apply:

• You don't have a server rack. The Pro Max is a 1U rackmount unit. Without a rack, you'll need a shelf mount or a desktop alternative like the Cloud Gateway Max.
• You plan to connect WiFi 7 APs directly to the gateway. The eight built-in RJ45 LAN ports are limited to 1 Gbps. Plugging a U7 Pro directly into the Pro Max bottlenecks it to 1 Gbps — you must add a 2.5G or 10G switch (e.g., UniFi Pro Max 24 PoE) to get full WiFi 7 speeds.
• Your device count is under 30. The Cloud Gateway Max handles up to ~30 devices cleanly at a third of the price. You'll be paying for capacity you don't need.
• You only need one internet connection. Shadow Mode's value is gateway redundancy. If a second UDM Pro Max as a failover unit isn't in your budget, you're paying for hardware designed around a feature you can't use.
• You need PoE from your gateway. The Pro Max has zero PoE ports. All PoE devices require a separate switch investment.

---

Setup and Configuration Recommendations

Essential Business Setup (~$2,600)

This setup covers the basics for a professional office: routing, switching, wireless, UPS, and NVR storage. Adding CyberSecure ($99/year) extends it with managed threat filtering — a reasonable add-on once the core infrastructure is stable.

Budget-Conscious Alternative (~$1,900)

This alternative provides 80% of the Pro Max capabilities while reducing total investment by $719. Consider this option for businesses with current device counts under 50 and single storage requirements.

---

Installation and Initial Setup

Setup Process

The UDM Pro Max follows Ubiquiti's streamlined setup process with improvements for business deployment:

• Initial Configuration: 15-20 minutes through mobile app or web interface
• Network Migration: 2-4 hours for complex existing networks
• RAID Setup: 30 minutes for dual-drive configuration
• Security Configuration: 45-60 minutes for comprehensive policies

Common Setup Considerations

Several factors require attention during professional deployment:

• Rack Ventilation: Ensure 1U spacing for optimal cooling with dual drives
• Power Planning: Account for 60W consumption plus connected devices
• No PoE Output: The UDM Pro Max has zero PoE ports. Every access point and PoE device needs power from a PoE switch or injector — budget for this before ordering.
• WiFi 7 APs need a multi-gig switch: The built-in RJ45 LAN ports are 1 Gbps. U7 Pro access points require a 2.5G or 10G switch (e.g., UniFi Pro Max 24 PoE) to operate above 1 Gbps.
• Backup Strategy: Configure RAID 1 before installing cameras
• Network Migration: Plan a maintenance window for cutover if replacing an existing gateway
• Cable Infrastructure: Consider professional network cabling installation for optimal performance

Migrating from UDM Pro or UDM SE

If you're upgrading from a standard UDM Pro or UDM SE, migration is straightforward via UniFi OS Cloud Backup:

1. On the existing gateway, go to System → Backup → Create Backup in UniFi OS
2. Download the .unf backup file to your computer
3. Set up the new UDM Pro Max and complete initial configuration
4. Navigate to System → Backup → Restore and upload the backup file

In our experience, this restores network topology, VLANs, firewall rules, and device associations cleanly. Total downtime is typically under 15 minutes for a straightforward network. Complex configurations with custom routing or third-party integrations may need manual review after restore.

---

Total Cost of Ownership Analysis

Three-Year Operating Cost Comparison

Return on Investment

The three-year cost comparison above tells most of the story. The $220 premium over the UDM Pro buys you 5 Gbps IDS/IPS throughput (vs. 3.5 Gbps), an extra HDD bay for RAID 1, doubled device capacity, and Shadow Mode failover — none of which the standard Pro supports.

---

Alternatives to Consider

Within the UniFi Ecosystem

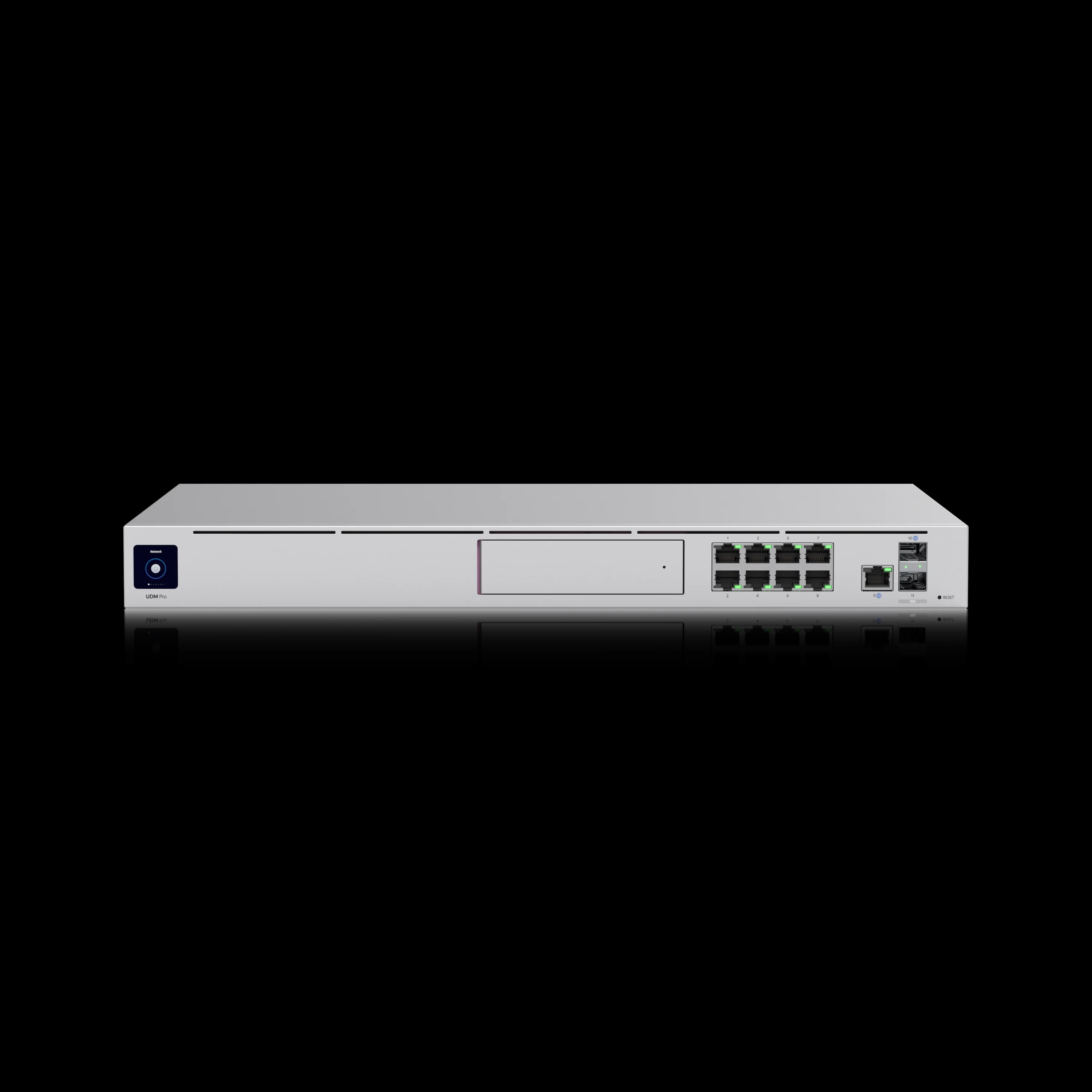

The standard UDM Pro remains an excellent choice for businesses with modest growth expectations. It provides 80% of Pro Max capabilities while saving $220. Consider this option if single storage meets your needs and device count stays under 75.

For smaller offices that prefer simplified deployment without rack mounting, the Cloud Gateway Max is a compelling desktop alternative with modern 2.5G ports.

Alternative Platforms

pfSense + Netgate Hardware ($700-1,000)

Open-source alternative providing extensive customization options. Requires significant technical expertise but offers unlimited flexibility for specialized requirements.

SonicWall TZ570 ($600)

Traditional security appliance with established enterprise support. Higher ongoing licensing costs, but includes vendor support and compliance certifications.

---

Frequently Asked Questions

Is the $220 premium over the standard UDM Pro justified?

The premium can be justified for businesses planning growth or requiring enhanced reliability. The Pro Max provides double the device capacity, RAID storage, and improved security throughput. However, smaller operations with stable requirements may find the standard UDM Pro sufficient.

Can existing UniFi equipment work with the Pro Max?

Yes, the Pro Max maintains full compatibility with all current UniFi access points, switches, and security devices. Existing installations can upgrade the gateway without replacing other components.

How does RAID storage benefit business operations?

RAID 1 configuration protects security camera footage against drive failure, ensuring surveillance continuity. This proves valuable for businesses with compliance requirements or security concerns.

What internet speeds can the Pro Max actually handle?

With full security features enabled, expect 4-5 Gbps sustained throughput. Without IDS/IPS, it approaches 10 Gbps line rate, making it suitable for multi-gigabit internet plans.

Does the Pro Max require professional installation?

Basic installation follows standard Ubiquiti procedures that are suitable for technically capable business owners. However, complex configurations involving VLANs, advanced security, or integration with existing systems benefit from professional deployment.

What is Shadow Mode and do I need it?

Shadow Mode (VRRP) provides automatic gateway failover by maintaining a backup UDM Pro Max that takes over if the primary unit fails. This high-availability feature makes sense for businesses where even brief network outages cause significant revenue loss or operational disruption. For most small businesses with standard operations, Shadow Mode represents optional redundancy rather than essential infrastructure.

How many 10G ports does the UDM Pro Max actually have?

The UDM Pro Max features (2) 10G SFP+ ports that are configurable for WAN or LAN use, plus (1) 2.5 GbE RJ45 WAN port and (8) 1 GbE RJ45 LAN ports. This gives you flexibility to configure dual 10G WAN connections, dedicate one to WAN and one to LAN, or customize based on your specific network topology.

Can I use both 10G SFP+ ports for WAN?

Yes, the UDM Pro Max allows flexible port assignment. You can configure both 10G SFP+ ports for WAN to support dual 10 Gbps internet connections, load balancing, or failover scenarios. This versatility makes it suitable for businesses with multi-gigabit internet services or complex WAN requirements.

How does power consumption compare to alternatives?

At its maximum of 60W, the Pro Max consumes slightly more than the standard UDM Pro (48W) but significantly less than comparable enterprise equipment. The difference represents approximately $10-15 monthly in typical business environments.

Can the Pro Max replace existing firewall appliances?

For most small businesses, yes. The integrated firewall, IDS/IPS, and threat management features match dedicated security appliances, which cost significantly more. However, businesses with specific compliance requirements should verify feature compatibility.

What happens if the Pro Max fails?

UniFi's Shadow Mode supports failover to a backup gateway, minimizing downtime. Configuration backups enable rapid replacement, though businesses should plan for 2-4 hour recovery windows without backup hardware.

How often does Ubiquiti release firmware updates?

Major updates typically occur every 2-3 months, with security patches released as needed. The Pro Max's enhanced processing ensures continued support for new features longer than older gateway models.

Is the CyberSecure subscription worth the additional $99 annually?

For most business environments, yes. At $99/year, you get 55,000+ threat signatures, content filtering, and geographic blocking — all running locally on the gateway. A comparable standalone IDS/IPS subscription from a dedicated appliance vendor typically costs several times more.

How does Site Magic SD-WAN compare to traditional VPN solutions?

Site Magic eliminates the complexity of traditional VPN configuration through automated peer-to-peer connections. What typically requires hours of technical setup becomes a one-click process through Site Manager. The service is license-free and supports up to 1,000 locations in a hub-and-spoke configuration, making it suitable for multi-location businesses.

Should businesses wait for newer UniFi gateways?

The Pro Max represents current-generation technology with a 5-7 year useful life expectancy. While future models will offer improvements, businesses experiencing current limitations benefit from an immediate upgrade rather than waiting for uncertain release schedules.

---

Final Assessment

For businesses that have already committed to the UniFi ecosystem and are running a server rack, the Pro Max is the gateway we'd specify first. The hardware will comfortably outlast most of the software changes Ubiquiti ships over the next several years.

After 12+ months of deployment across multiple client sites, the UDM Pro Max has held up well. It hasn't required firmware rollbacks, the Shadow Mode failover worked correctly on the one occasion we tested it under production conditions, and Ubiquiti's update cadence has been consistent.

---

Need assistance implementing the UDM Pro Max in your business environment? Contact us for a personalized network assessment and implementation proposal.

Pricing and specifications accurate as of February 2026. Product availability varies by region.
